APEx Algorithm Service Catalogue

The APEx Algorithm Services Catalogue is a valuable and innovative resource that grants access to a wide array of high-quality EO services. It serves as a central hub for users to discover EO services tailored to their specific requirements. For EO projects, this catalogue provides an intuitive and reliable platform to showcase and offer their services to a broader community, thereby fostering collaboration and enhancing the utilization of their results.

All algorithms registered in this repository are seamlessly integrated and visualized within the APEx Algorithm Services Catalogue. This integration relies on properties defined in the OGC API Records stored in a JSON format. The information gleaned from the OGC API Records is instrumental in constructing both the overview of the catalogue and the detailed pages of each service.

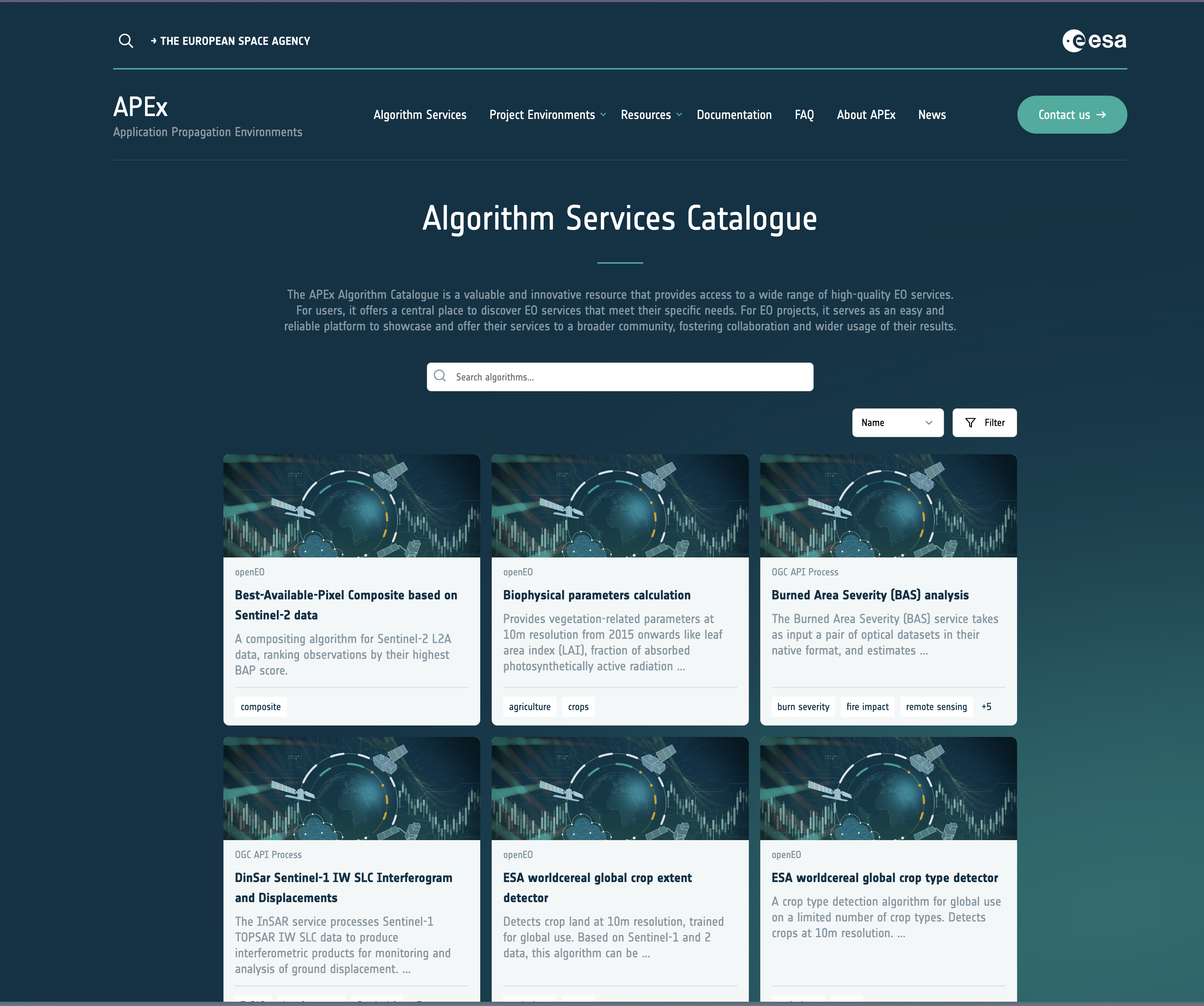

Figure 1: APEx Algorithm Services Catalogue - Overview

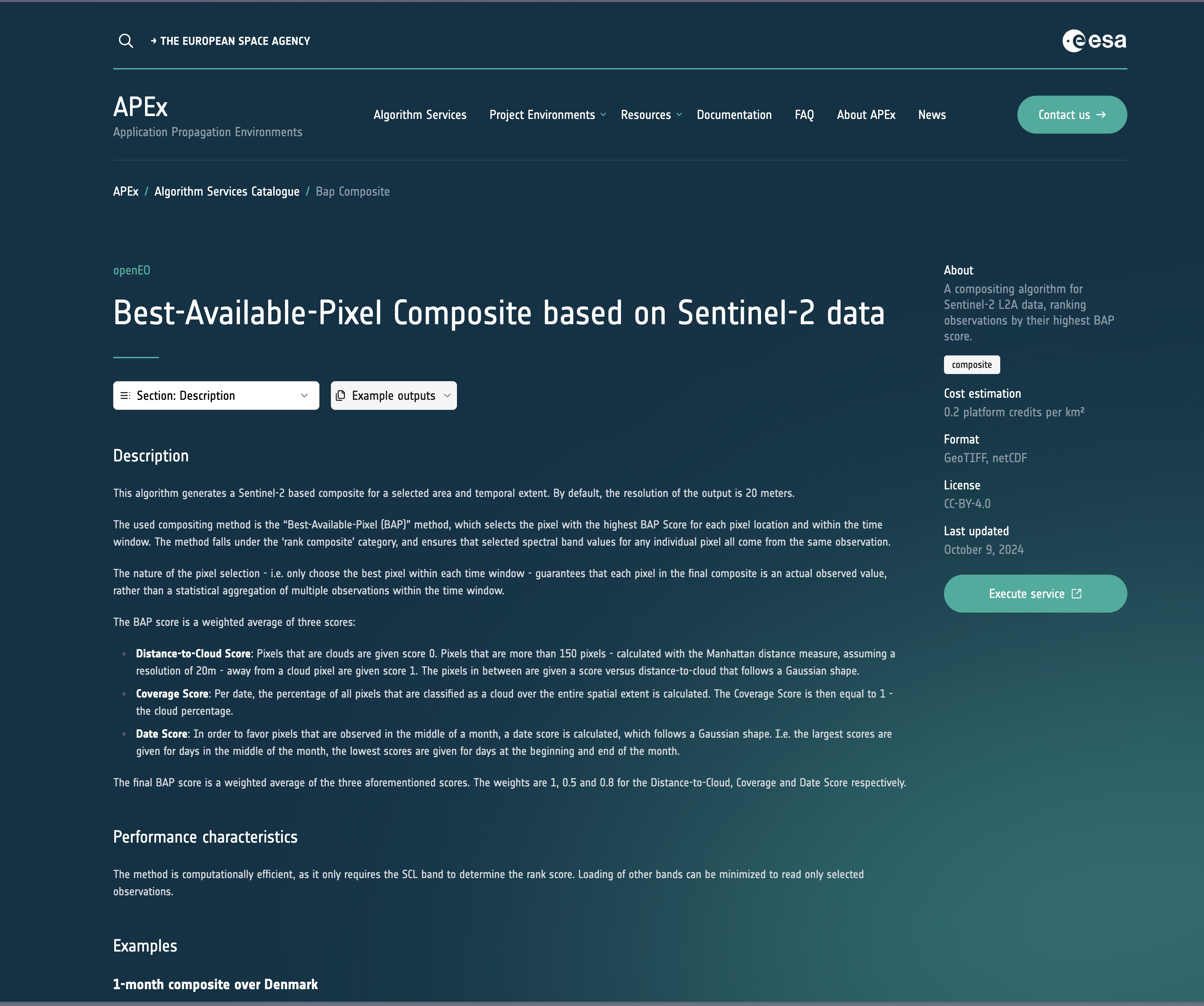

Figure 2: APEx Algorithm Services Catalogue - Service Details

This page will delve deeper into the setup and operations of this integration, providing further insights into how users can benefit from the services offered.

Record Mapping

The following sections demonstrate how the various sections from the record are connected to the information displayed in the APEx Algorithm Service Catalogue.

Services Overview

Table 1 illustrates how the various sections from the record are connected to the general overview of all the services in the APEx Service Catalogue as shown in Figure 1.

Table 1: APEx Algorithm Service Catalogue - Overview Mapping
Component Description Record Property
Header Header image of the service card Entry in properties.links where rel is equal to thumbnail. If not available, a default image will be shown.
Type Type of the service Determined based on the value of the confirmsTo field.
Title Title of the service card properties.title
Description Description of the service card properties.description
Tags Tags shown at the bottom of the service card properties.keywords

Service Details

The following tables illustrate how the various sections from the record are connected to the service details page as shown in Figure 2.

Main Content

Table 2: APEx Algorithm Service Catalogue - Details Main Content Mapping
Component Description Record Property
Type Type of the service Determined based on the value of the confirmsTo field.
Title Title of the page properties.title
Description The full description of the service If there is an entry in the properties.links section with rel equal to application, it will use this URL to fetch the description from the openEO UDP or CWL file. If the resource is protected or if it was not possible to fetch the information, this part will contain the value of properties.description.
Preview Images shown as preview of the service An image will be shown for each entry in the properties.links section where rel is set to preview.
Execution Information Details for the execution of the service This information is based on the properties.links where rel is equal to service or application. If the openEO UDP or CWL is publicly available, additional information will be fetched from its definition and automatically visualised in this section.
Contact Contact information properties.contacts

Sidebar

Table 3: APEx Algorithm Service Catalogue - Details Main Content Mapping
Component Description Record Property
About Short description of the service properties.description
Cost estimation Estimated execution cost of the service The actual price is determined by properties.cost_estimate and the unit by properties.cost_units
Format Supported output formats of the service List of the name properties within the properties.formats array
License License linked to the usage of the service properties.license
Legal Agreement Legal agreement linked to the usage of the service Entry in the properties.links section where rel is set to license
Last Updated Timestamp of the most recent service update properties.updates
Documentation Button to redirect users to the service documentation Entry in the properties.links section where rel is set to about
Code Repository Button to redirect users to the service code repository Entry in the properties.links section where rel is set to code
Request Access Button to redirect users to the page to request access to the service Entry in the properties.links section where rel is set to order
Execute Service Button to redirect users to the page to execute the service Entry in the properties.links section where rel is set to webapp
